Bundle Tubes

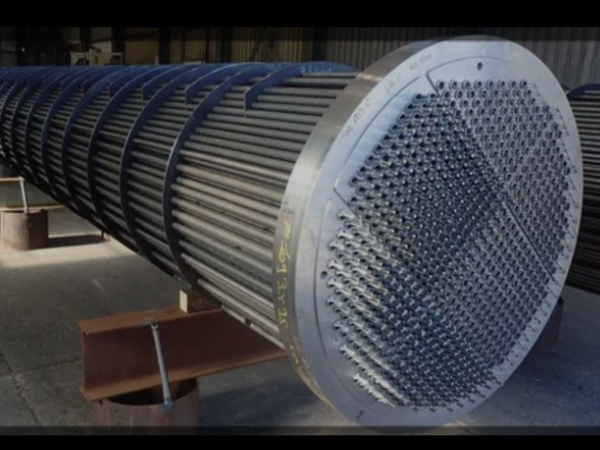

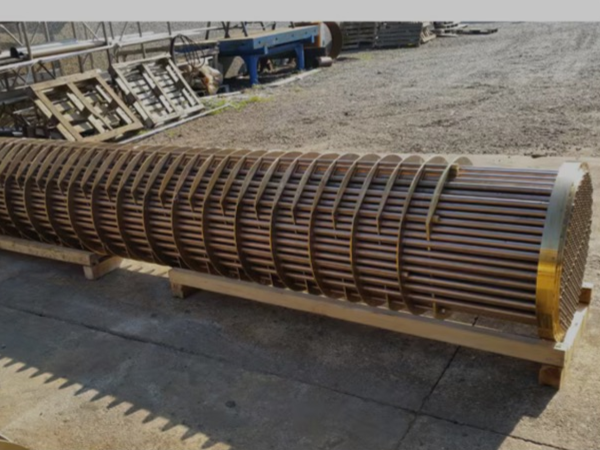

Bundle tubes, also known as tube bundles, are a critical component of shell-and-tube heat exchangers used in power plants. They consist of multiple tubes bundled together within a shell, designed to transfer heat between fluids—typically between water, steam, oil, or gas—without allowing the fluids to mix.
In power plant systems, tube bundles are integral to equipment like feedwater heaters, condensers, lube oil coolers, and boiler economizers. Their primary function is to maximize surface area for efficient heat transfer while withstanding high pressures and temperatures common in thermal energy applications.
Key Features:
-
Constructed from high-performance materials like stainless steel, copper alloys, Inconel, or titanium
-
Available in straight, U-tube, or helical configurations
-
Precision-engineered for optimal thermal conductivity and fluid dynamics
-
Resistant to corrosion, fouling, and thermal stress
-
Easily removable for inspection, cleaning, or replacement
-
Designed in accordance with ASME and TEMA standards
Typical Applications in Power Plants:
-
Feedwater heating systems
-
Steam condensers
-
Boiler economizers
-
Air and gas coolers
-
Oil and fluid heat exchangers
Tube bundles are essential for efficient thermal energy exchange, helping power plants achieve greater fuel economy, reduce emissions, and maintain stable operations. Their design and material selection are tailored to meet the specific performance and longevity requirements of demanding power plant environments.
