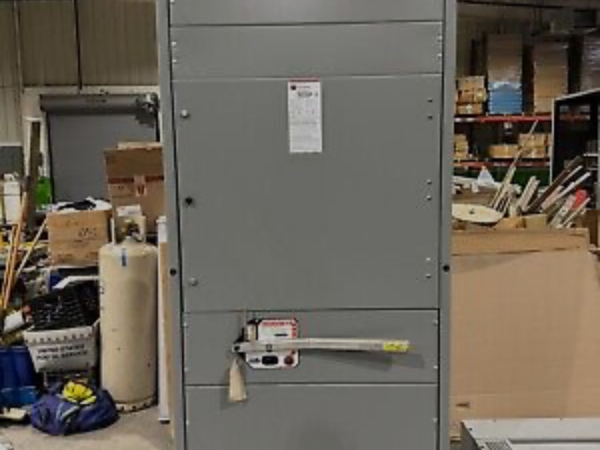

Disconnect Switches
Disconnect switches, also known as isolators, are critical safety devices used in power plants to manually disconnect electrical equipment or circuits from the power source. They provide a visible, physical break in the circuit, ensuring safe maintenance, inspection, and emergency shutdown of high-voltage systems.
In power plant environments, disconnect switches are installed in substations, switchgear assemblies, and distribution panels to isolate components such as transformers, generators, busbars, and transmission lines. They are designed to handle high voltage and current levels while maintaining reliable operation in harsh conditions.
Key Features:
-
High-voltage and high-current rating capabilities
-
Manual or motorized operation options
-
Visible open contacts for safety assurance
-
Arc-resistant design for enhanced protection
-
Outdoor or indoor enclosures (NEMA/IP rated)
-
Compliance with IEC, ANSI, IEEE, and NEC standards
Applications:
-
Isolation of electrical equipment for maintenance
-
Emergency disconnection of power circuits
-
Integration with protection and control systems
-
Safety interlocking with circuit breakers and relays
Disconnect switches are essential to ensuring personnel safety and preventing equipment damage by enabling secure isolation of electrical systems in power generation facilities.
